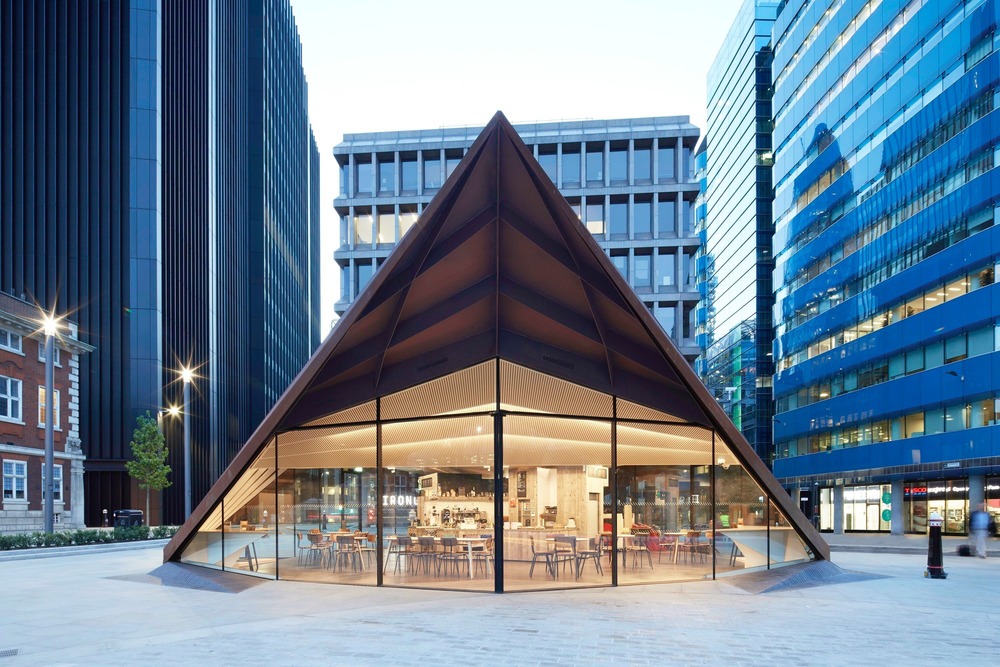

ortsoken Pavilion, a sculptural monocoque structure by Make Architects,

Make Architects design new pavilion for City of London

Jul 13, 2018
  • Article by Natalie Mortimer

A new pavilion designed by Make has been unveiled as part of the City of London Corporation’s transformation of a former gyratory into a public space.

The former complex roundabout, with its series of pedestrian subways, has been the subject of intense development for over six years to reroute roads, block off unsafe subways and transform the area into the new Aldgate Square—one of the largest public spaces in London’s Square Mile.

The pavilion at night time

The Portsoken Pavilion by Make is a sculptural monocoque structure (it uses its outer shell to support stresses and loads) and will be run by local social enterprise Kahaila as a café and multifunctional community space.

It is the second in a series of pavilions planned by the City of London Corporation and was required to have an aesthetic relationship with the first, RIBA Award-winning pavilion, the City of London Information Centre adjacent to St Paul’s Cathedral, which was completed by Make in 2008.

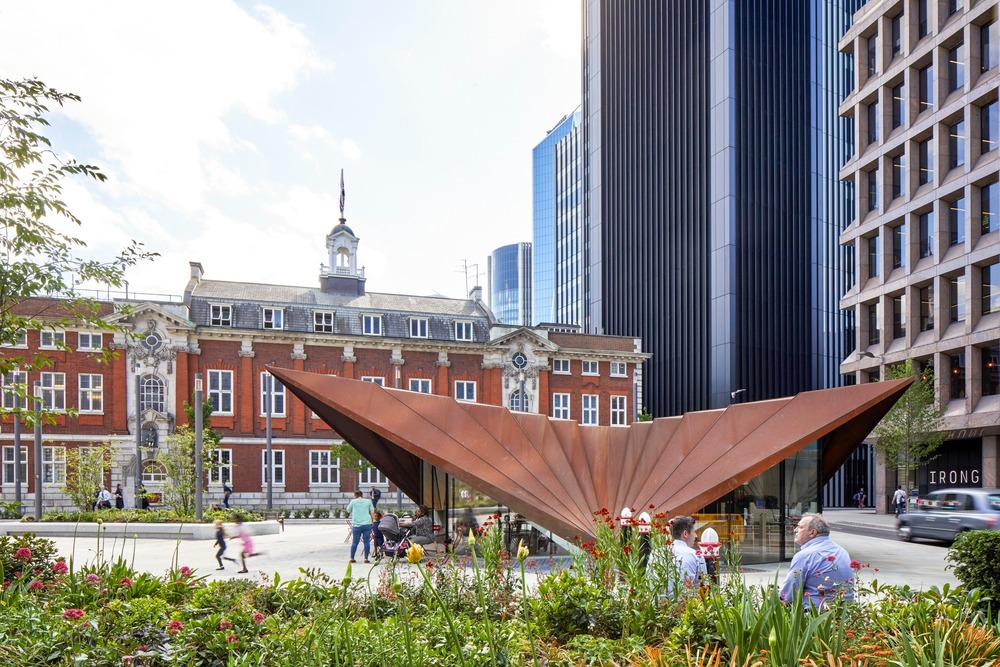

Alternative angle of the pavilion

The 325 sqm building is a single storey above-ground but has utilised part of the former subways to accommodate a basement level for plant, back-of-house facilities, kitchens and toilets. The design picks up on the asymmetrical angles of the City of London Information Centre with an angular structure that folds down to meet the ground at three triangular support points, with glazing in between.

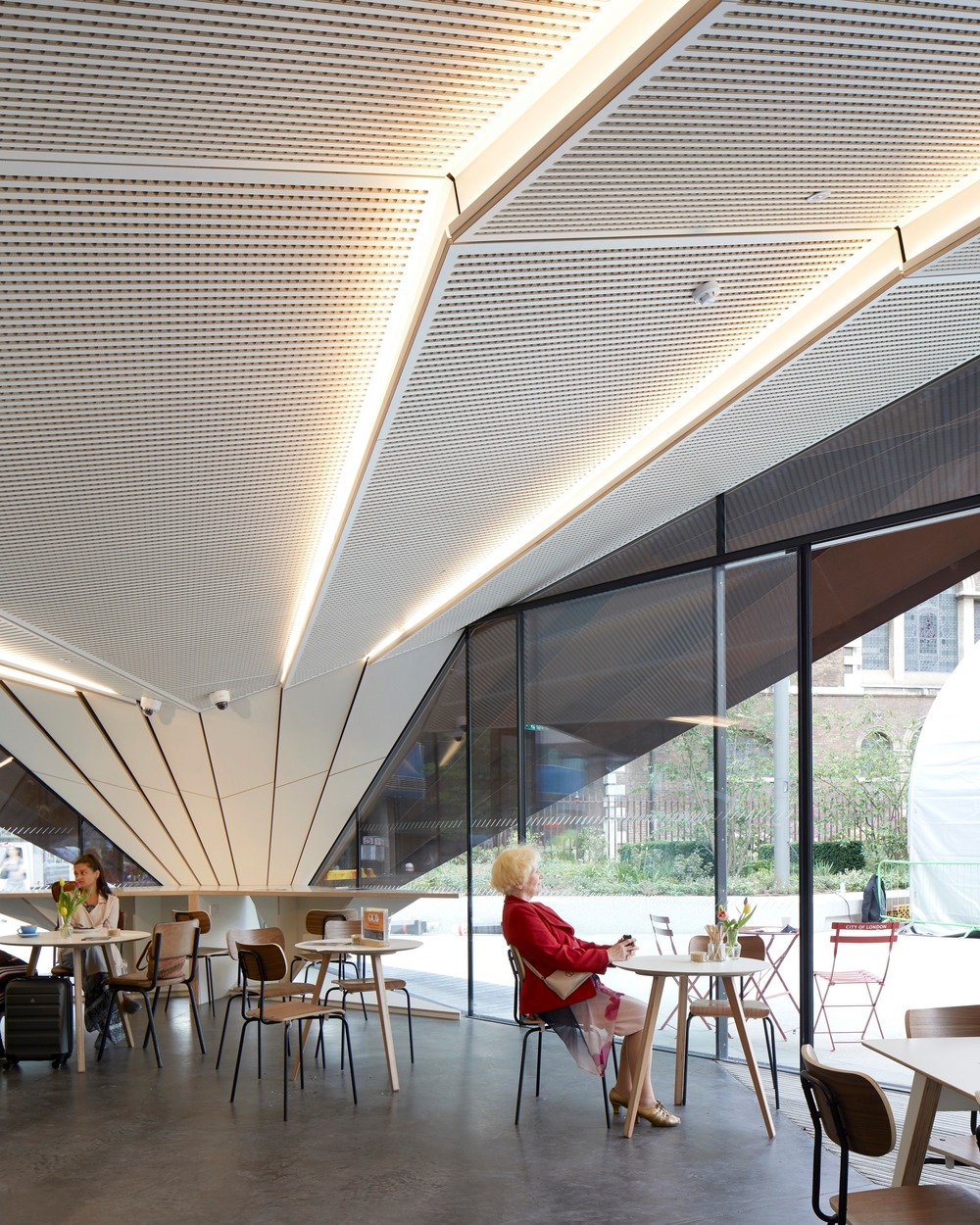

Inside the Pavilion

Corten cladding panels form a rigid structural skin covering the pavilion and create a faceted surface that reduces the overall profile of the pavilion and gives its character.

Designed parametrically, the pavilion’s form has been designed with respect to key pedestrian approaches to the new square meaning it has no backside, and its three glazed elevations face Duke’s Place to the north-west, Houndsditch and St Botolph Street to the north-east, and the new square and Aldgate High Street to the south. These elevations provide clear views into and through the structure.

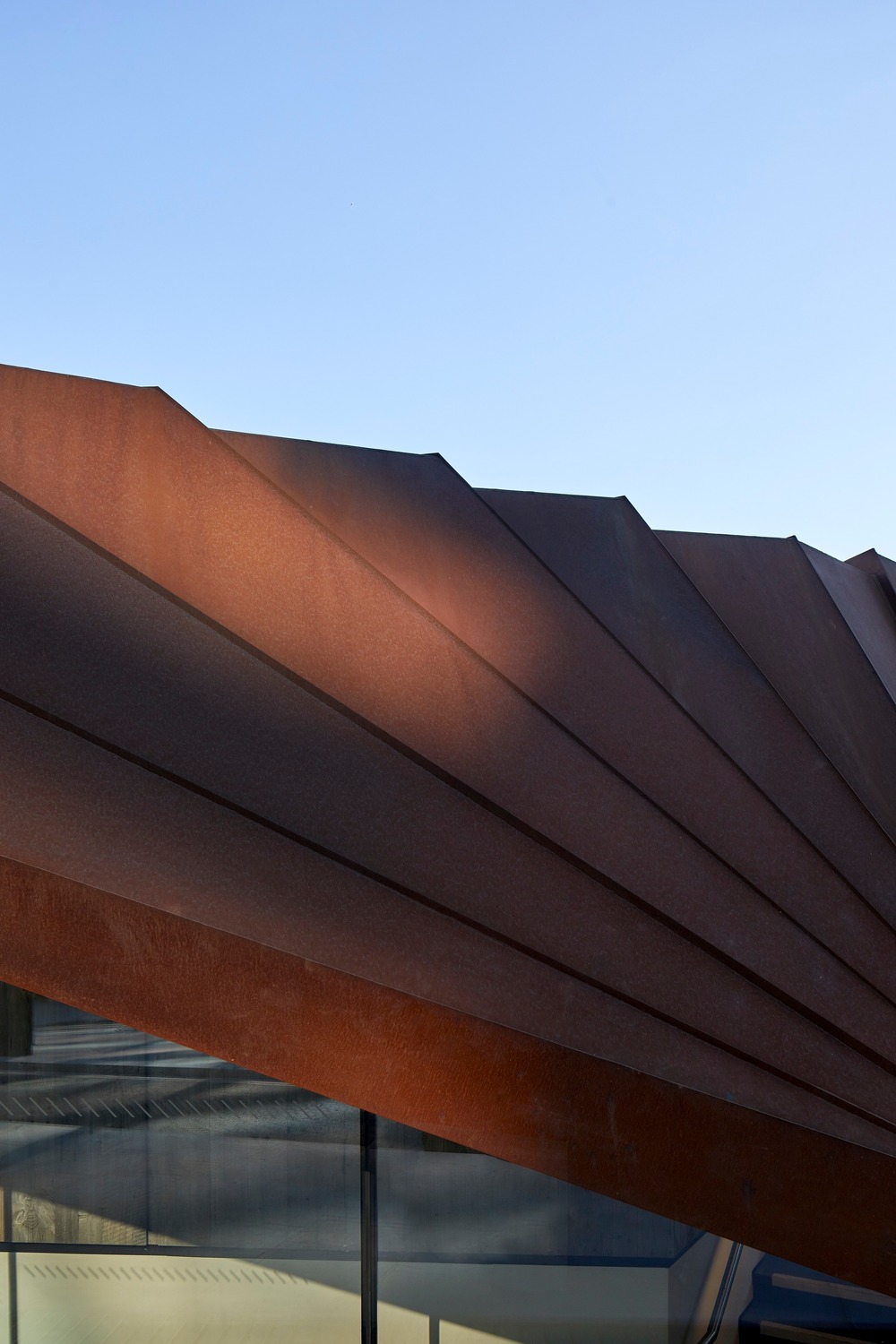

Details of the angles on the pavilion roof

The entire structure was prefabricated off-site and then taken apart and allowed to rust while the site was prepared. It was brought onto the site in pieces and reassembled and welded in situ.

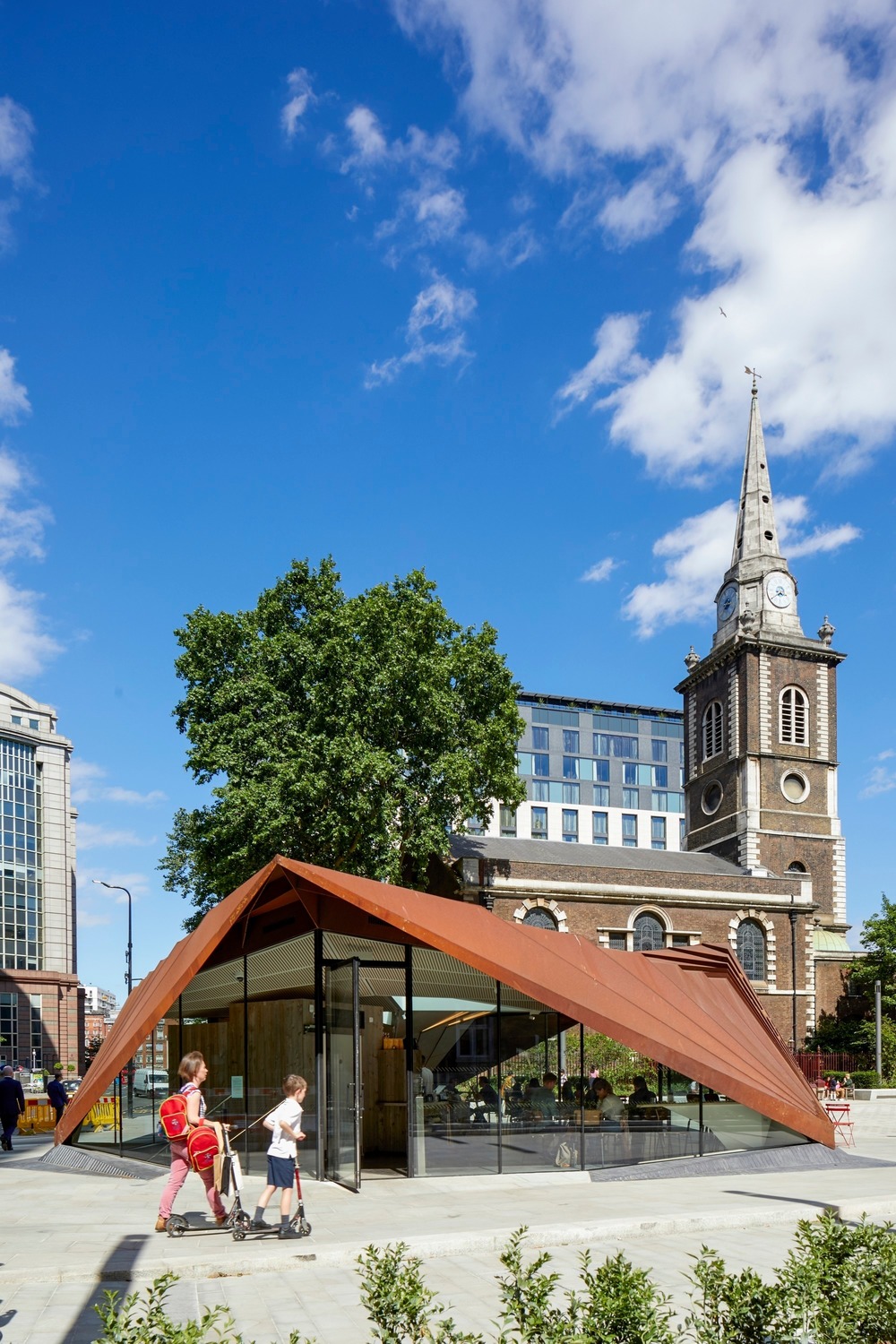

aLTERNATIVE VIEW OF THE PAVILION

Sarah Shuttleworth project architect says: “The final scheme is beautiful—distinctive, yet respectful of the heritage architecture surrounding it. It provides a bespoke civic amenity and the ambition and determination of the City of London Corporation to persist and deliver the square and the pavilion—despite the challenges—in order to transform this parcel of London for the benefit of the local community, should be applauded.”

Photography by Make Architects
