Rubber recycling innovation for residential market

Apr 1, 2022
  • Article by Online Editor

A novel approach to rubber recycling could see end-of-life tyres repurposed into concrete for residential constructions.

New research from the University of South Australia shows that the end product can provide an economically viable and sustainable alternative to conventional concrete.

Working with RMIT University, researchers demonstrated that crumb rubber concrete is a safe, green alternative for residential construction in Australia, proving a much needed new market for end-of-life tyres.

Lead researcher, UniSA’s Professor Julie Mills, says that this research is the first to practically demonstrate and construct the new crumb rubber concrete mix in the field.

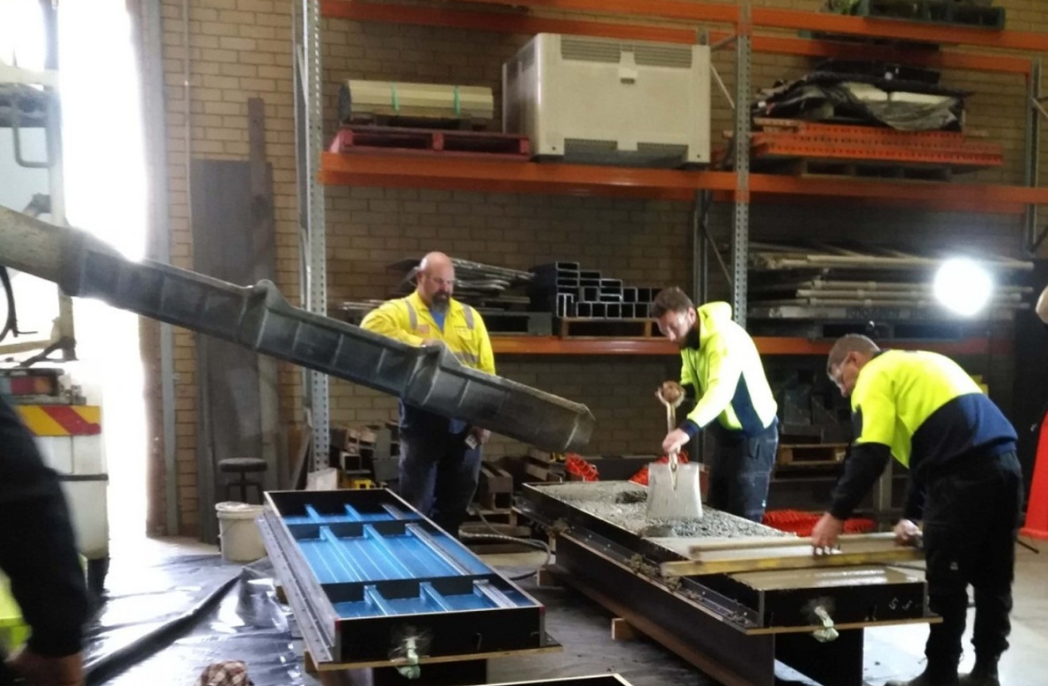

Two residential slabs (one with crumb rubber concrete and the other with conventional concrete) were poured at the University of South Australia’s Mawson Lakes campus in October 2018. These slabs have been monitored for more than two years and the crumb rubber concrete slab continues to perform well.

Globally, approximately 1.5 billion vehicle tyres are discarded each year. Less than one percent of these are reused, with the rest being unaccounted for or dumped in landfills. In Australia about 51 million tyres end up in landfills, stockpiles or dumped on mine sites.

Co-researcher Dr Osama Youssf says that accumulation of end-of-life tyres is a global and growing problem for the global environment.

“Rubber tyres are not biodegradable and lead to unstable landfills, breeding grounds for mosquitoes from trapped water, polluted surfaces and toxic groundwater. They pose a significant risk for toxic fires,” Dr Youssf says.

In 2021 for example, the world’s largest tyre-dumping site (comprising 50 million tyres) caught fire outside of the capital of Kuwait, spewing toxic pollutants into the air. Decades earlier, 10 million tyres caught fire near Knighton in Wales; it took months to put the fire out, and it smouldered for 15 years until 2004.

By recycling end of life tyres in concrete, such disasters can be avoided, valuable natural resources can be conserved and the current tyre landfill problem can be partially resolved.

“In Australia, two thirds of tyres end up in landfill. Such continuous waste production and disposal is entirely unsustainable, which is why we have been investigating alternative recycling options,” says Youssf.

“This research investigated the design and processing of various crumb rubber concrete mixes for use in residential constructions, assessing its constructability, bond strength, durability, and flexural strength.

“We found that reinforced crumb rubber concrete (with up to 20 percent sand replacement by volume) is superior to conventional concrete in some ways, with higher impact resistance, toughness and ductility, a higher damping ratio, better thermal and acoustic insulation, and a lighter weight.

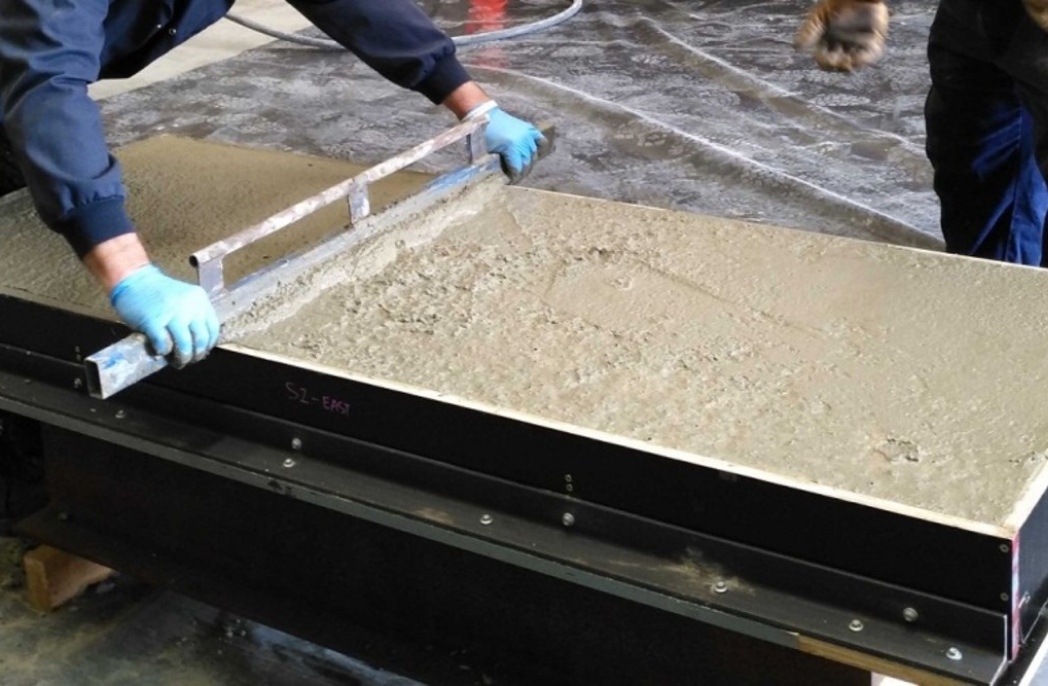

“With respect to pumping, screeding or finishing the concrete surface using a power trowel, contractors also reported no difference between using the crumb rubber concrete and conventional concrete, saying that the crumb rubber mix actually required less physical effort across all aspects.

“Additionally, the ready-mix cement companies reported no concerns relating to concrete batching, delivery or mixing, and said that the wash out of the concrete truck mixer was far easier.”

Co-researcher UniSA’s Professor Yan Zhuge says that this research shows just how suitable crumb rubber concrete is for residential constructions.

“This is an exciting development for both the recycling and construction industry,” Prof Zhuge says.

“The results clearly show that crumb rubber cement is a viable and promising alternative to conventional concrete in the residential concrete market.

“We strongly recommend that the concrete industry considers crumb rubber concrete as a sustainable alternative to conventional concrete in reinforced residential constructions in Australia.”
