- Article by Tili Bensley-Nettheim
A UNSW Master’s student has designed the world’s first soft robotic hand that can pick up, put down, paint and hammer with greater ease than current models in the workforce.
“Industrial robots are so dangerous the way they are now,” says Charlotte Firth, who is creating the robotic hand as part of her Master of Computational Design degree.
“Being able to create soft robots would change the way humans interact with them and it will take out the element of danger.”
The hand, or ‘anthropomorphic end effector’ as it’s known technically, will fit onto one of two mechanical arms, called ‘collaborative robots’, assembled by UNSW Built Environment researchers and technicians last year.

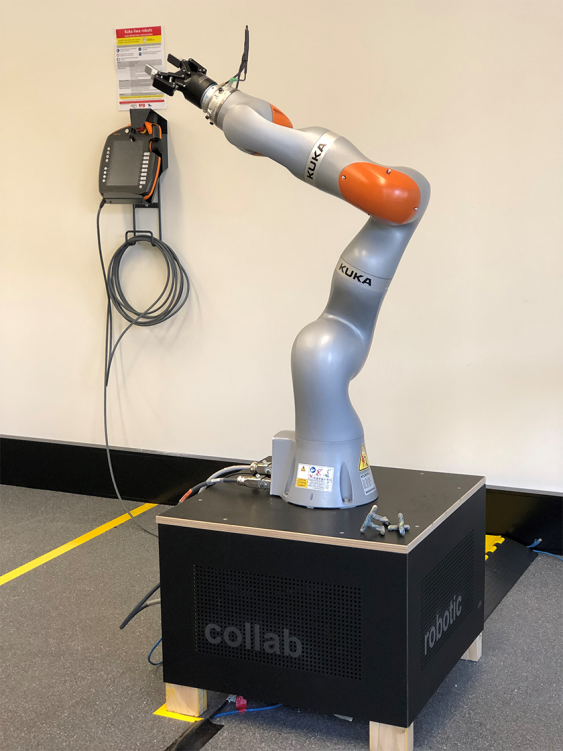

The robotic arms, nicknamed Betty and Arnold, are two of just six in Australia, and UNSW is the first university to have them up and running.
“We’ll be testing [the hand as an attachment on the robotic arms] and actually seeing if that soft material has the capability to hammer a nail, pick up a paintbrush and be able to paint and trim,” Firth says.

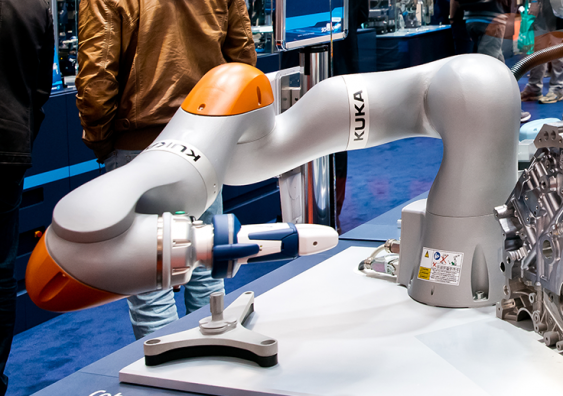

Unlike industrial robots, these collaborative robots — known as cobots — have stop sensors that enable them to work alongside humans in various workplaces, Dunn says.
From hammering on construction sites to bone drilling in surgical situations, the two robotic arms need to be sensitive enough to work alongside people without hurting them.

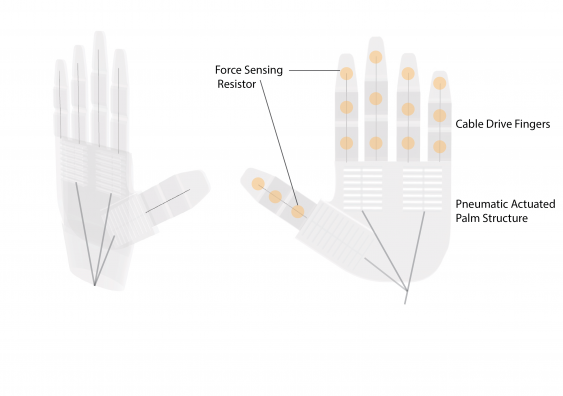

So, Firth is creating the cobot’s hand out of softer silicone material and making the palm more human-like in its range of motion to allow it to do more tasks.
Limitations of current hand models
The robotic hands currently on the market are mostly two-pronged grippers and do not mimic the motion of the human palm when picking up, grasping and putting down objects, says Firth.
“People have focused a lot more on the finger design and how we move them towards our hands,” she says. “But no one has actually focused on the hand as a whole and how your palm works within that process.
“When you grab something, you don’t just fold your fingers down to grip a tool, you actually move your whole hand with it.”
The robotic hand will be programmed to manage mundane to meticulous tasks such as painting, trimming and hammering on construction sites.
“[For example], painting around the edges of door frames is a task that is very repetitive, needs a lot of accuracy and takes painters a really long time to do,” Firth explains.
The cost-less cobot
Firth says her robotic hand will cut time and costs for businesses, as cobots on construction sites usually need more than one ‘end effector’ to do a range of actions and activities.
“Anthropomorphic end effectors cost hundreds of thousands of dollars and they’re quite hard to get your hands on,” Firth says.
“Everything else is just really basic, or suction grip that can only pick up flat sheets. So the idea behind this is if you want a robot on site then you want it to be able to carry out multiple tasks.”
Additionally, Firth says having 3D printers readily available that specialise in printing softer materials such as silicone would push the limitations further than what is currently possible in research labs.

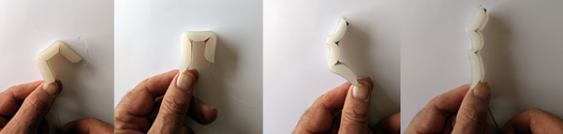

“You would think that it is easy to pour silicon in and it would set, and you could pull it apart, but it’s actually quite an intricate process,” she says.
Collaborative robots to help fill the skills shortage
Firth became interested in cobots in construction due to the shortage of skilled workers onsite, and the potential for robotic material because of its underuse in industry, she says.
“[With the] shortages of skilled trade workers and … less people going to TAFE, I began wondering how you could implement [more] robots then to work on site with humans, … not necessarily replace people, but just to fill that void we currently have.”
Most states are experiencing skills shortages in areas such as motor mechanics, panel beating, plumbing and cabinetmaking, according to the federal government’s latest 2018-2019 Labour Market analysis of Skilled Workers.
As a result, employers can now field skilled workers from overseas during the COVID-19 crisis if they can first prove an Australian citizen or permanent resident is unable to fill the role.
And in the attempt to keep about 180,000 apprentices employed during the pandemic, the government has this year invested $2.7 billion in a wage subsidy scheme set to benefit about 90,000 small and medium businesses.
